Package include

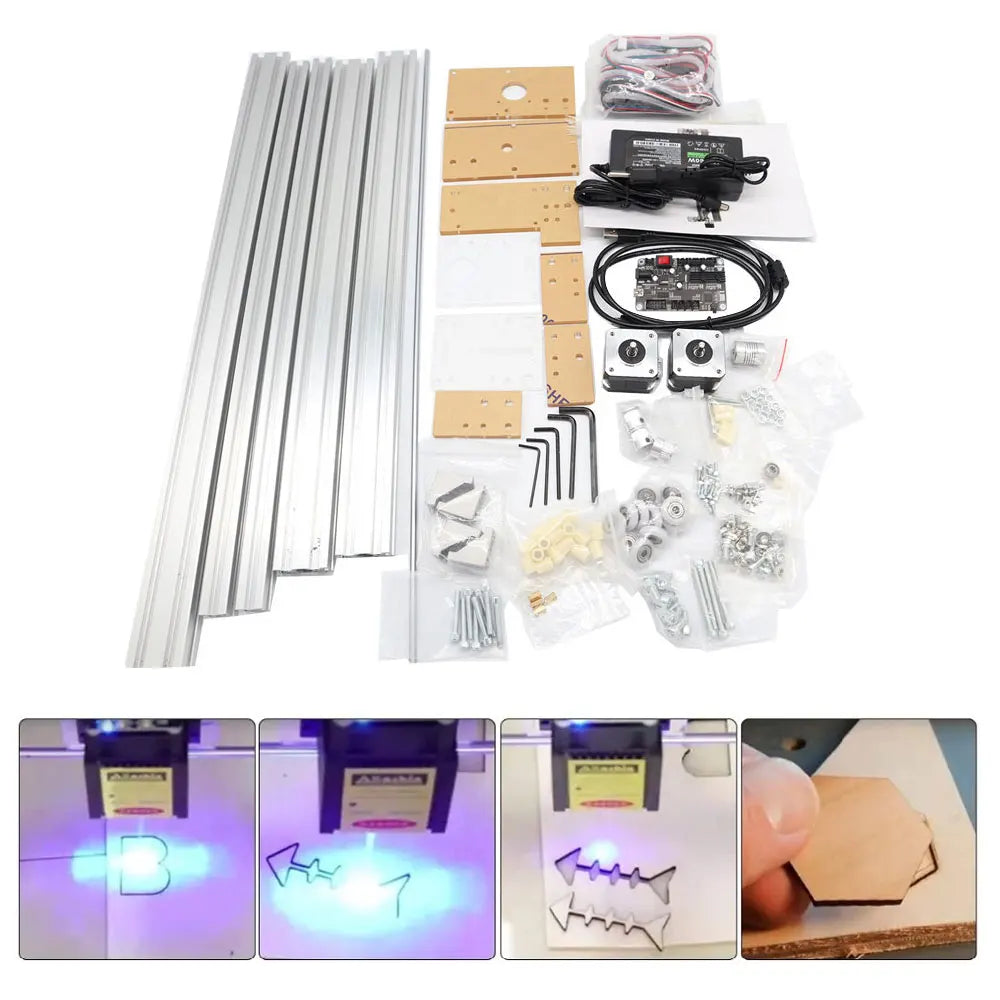

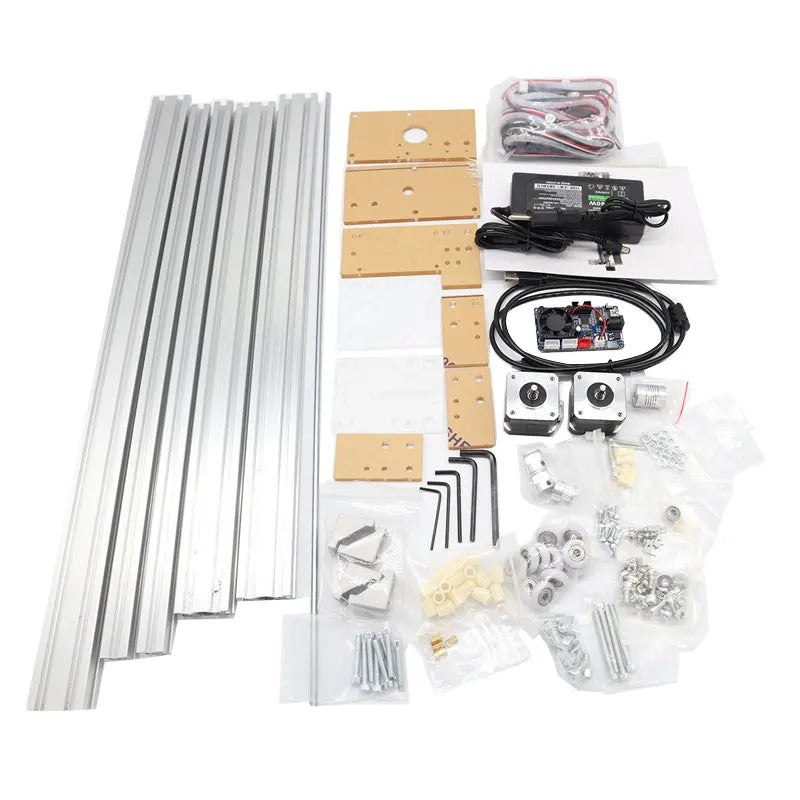

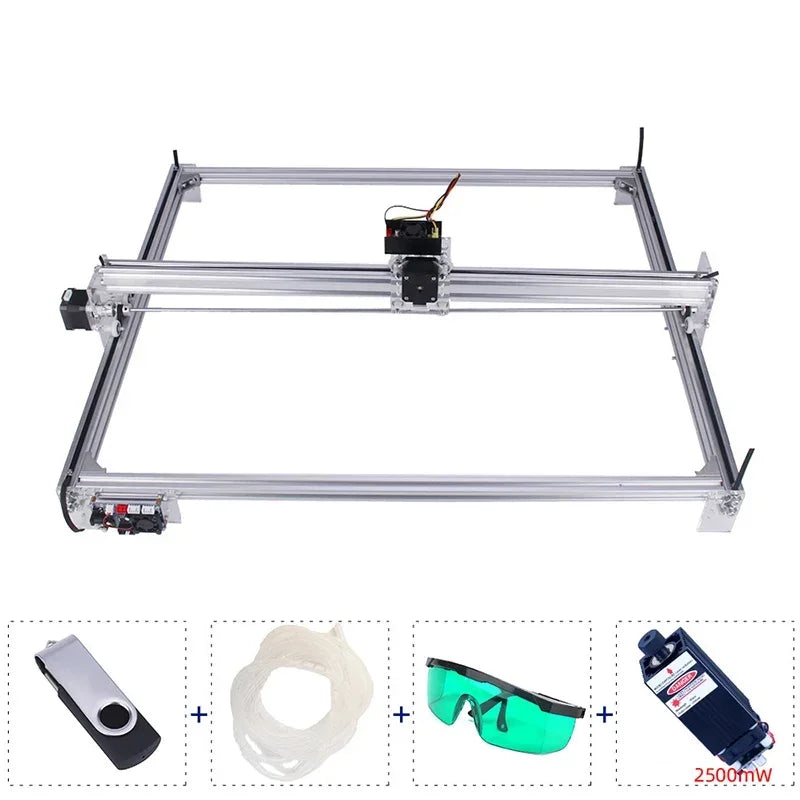

1*CNC 6550 Laser engraver Kits

(options different, pls check carefully before order,thanks!)

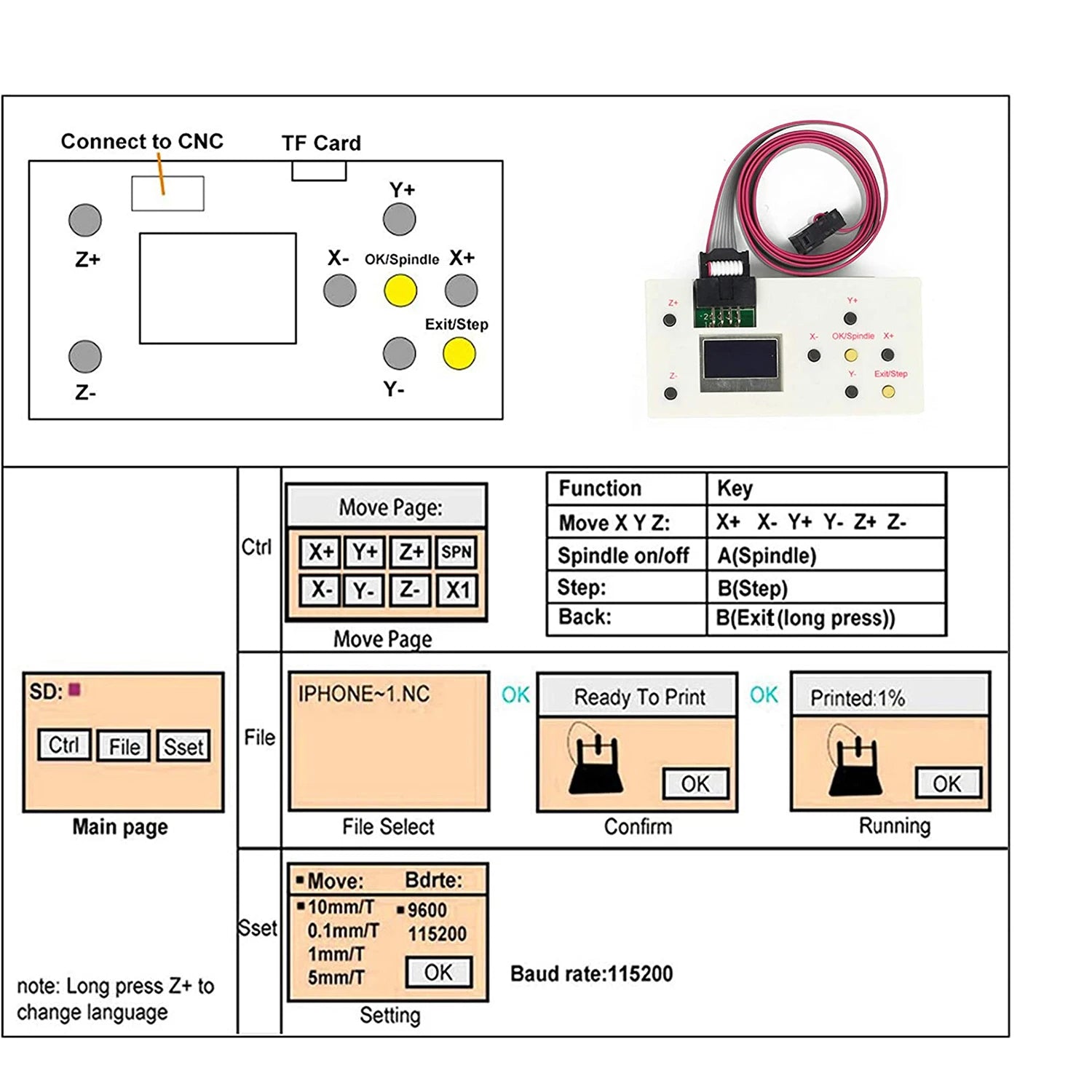

About Offline controller:

No Offline Controller: Connect the machine to the computer to work

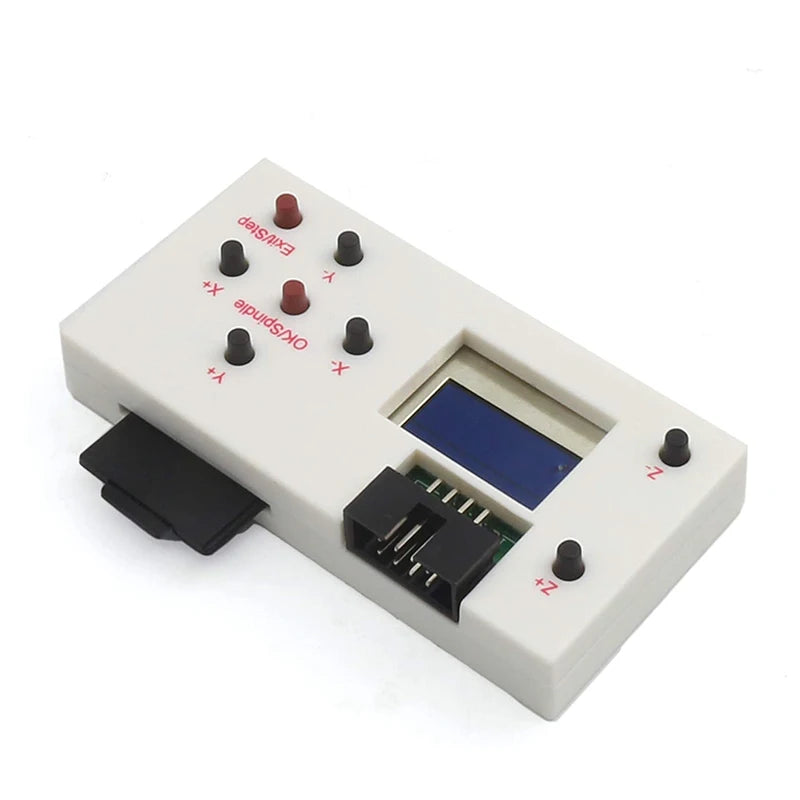

Add Offline Controller: Can connect the machine to work directly, no need connect to a computer.

Compare with 3-Axis CNC engraver

1.Lighter and more convenient;
2.Engraving speed is much faster;
3.Engraving area is much larger.
4.More powerful laser for supporting.

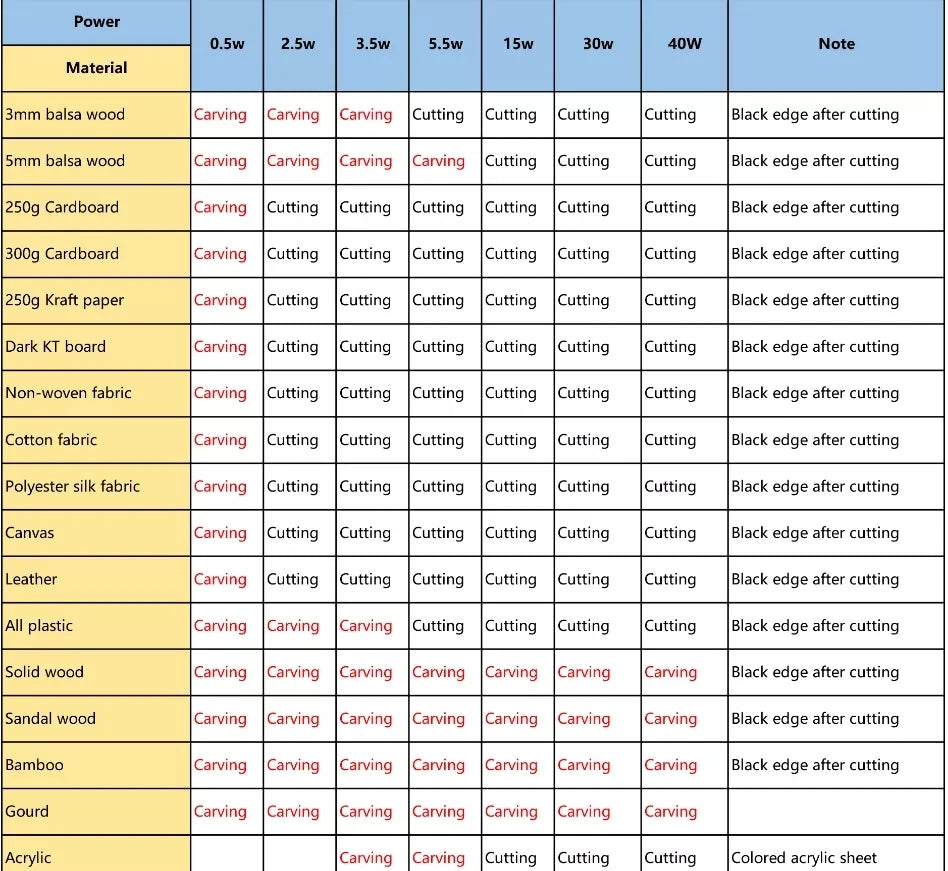

Material for working:

1.5500mW laser is adjustable lens for focus, suitable focus length is 6-7cm, it can engrave on wood,plywood,bamboo,leather,black acrylic,plastic,rubberm etc. It also can cut about 2mm carbon board and wood board;

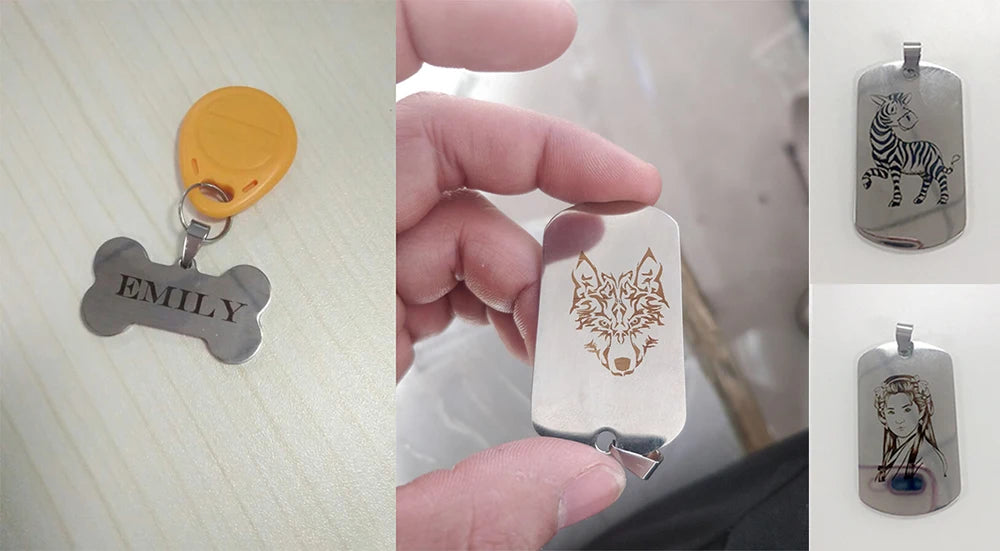

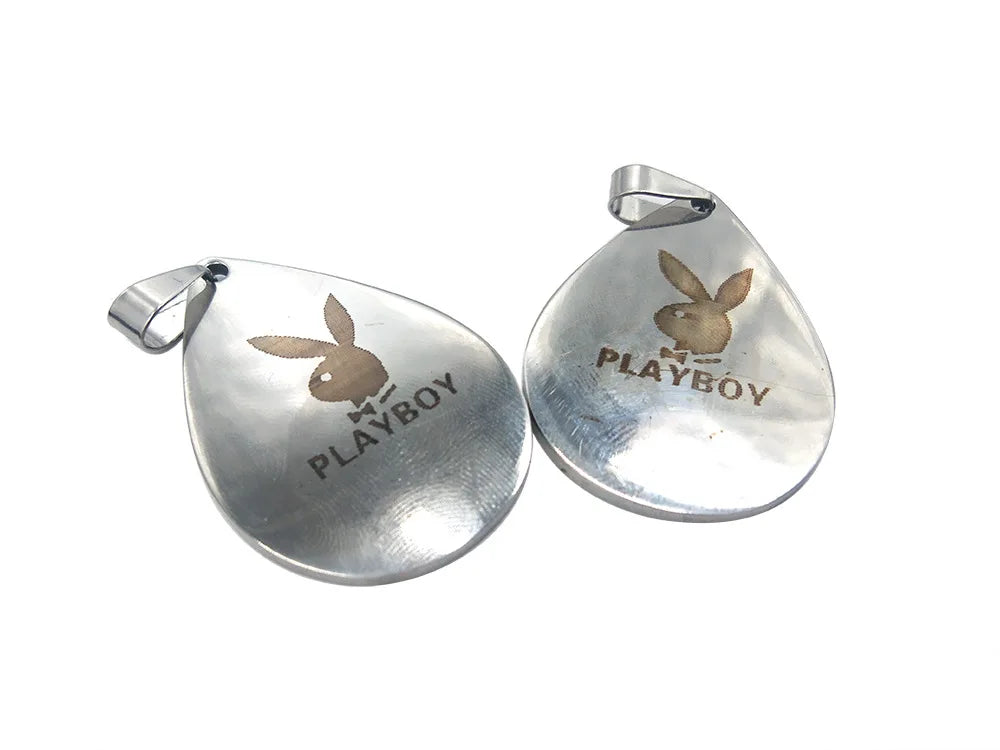

2. 15W laser is fixed 18mm focus, engrave much faster,large power, it can engrave on stainless steel easily and fast speed,and also suitable for some other metal printing, it can cut about 3-4mm wood,leather,black acrylic and etc.

Note:

If you need some more information about software and working video please contact with me, we will offer link to you,thanks for your understanding!

Parameter

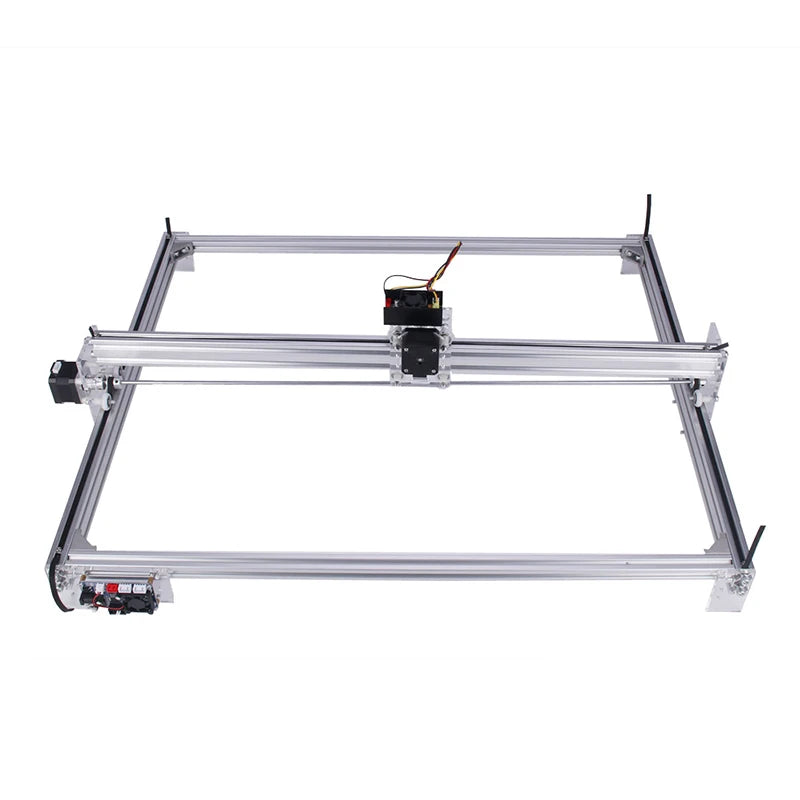

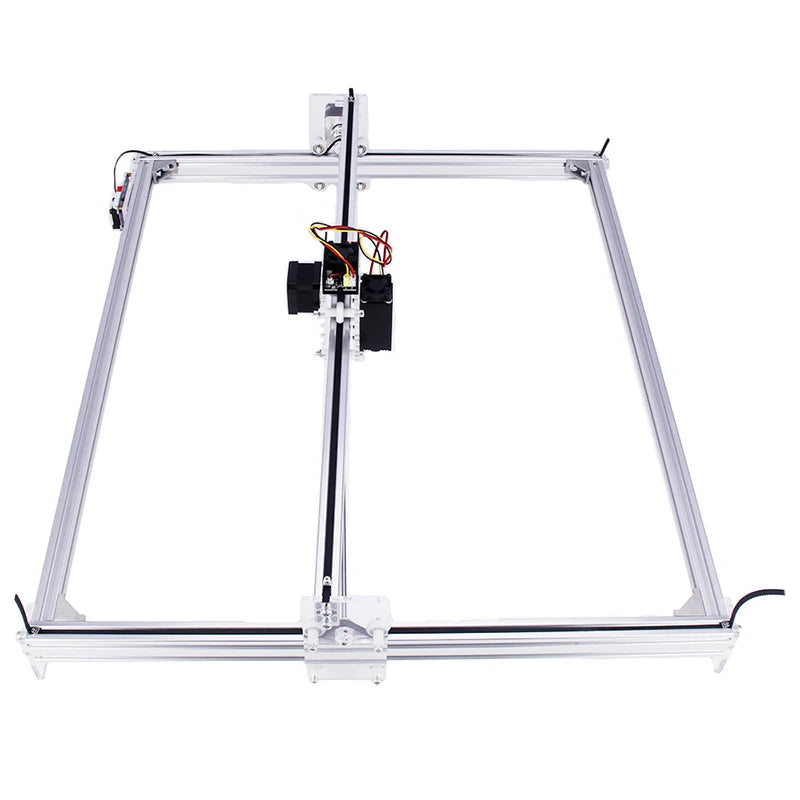

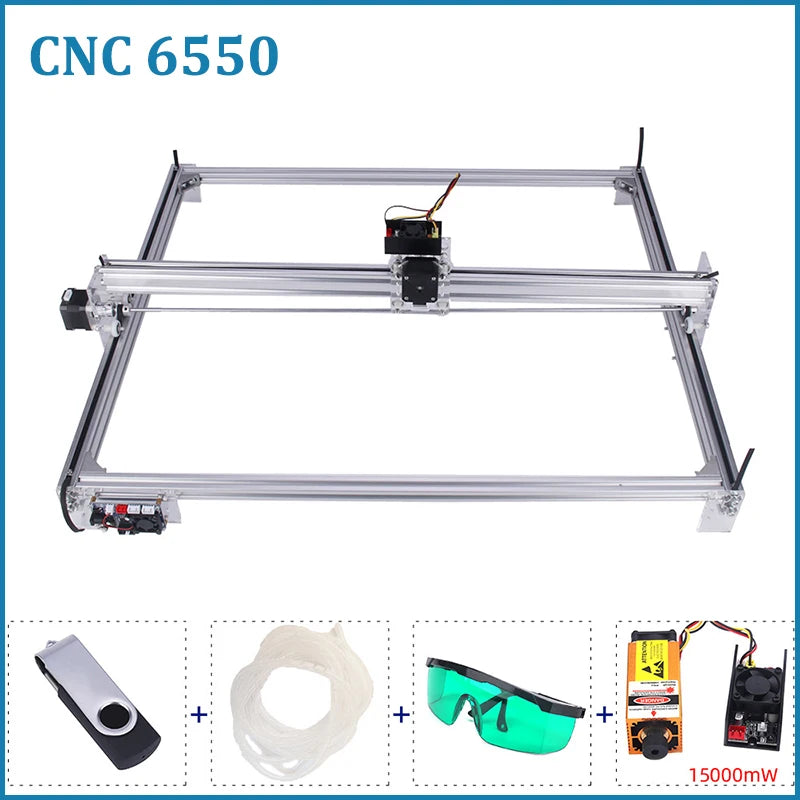

Model: CNC6550 Laser Engraver

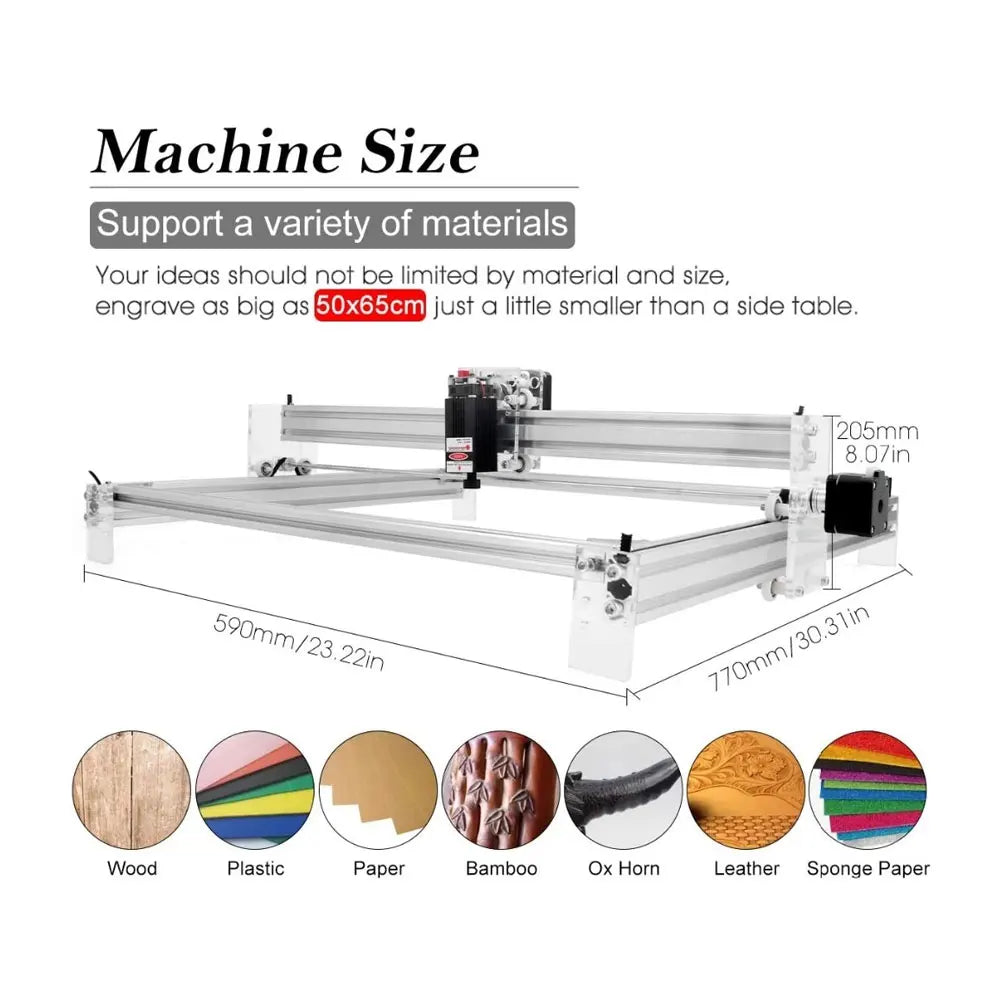

Engraving area:65*50cm

Bulilt-in firmware: GRBL 1.1f

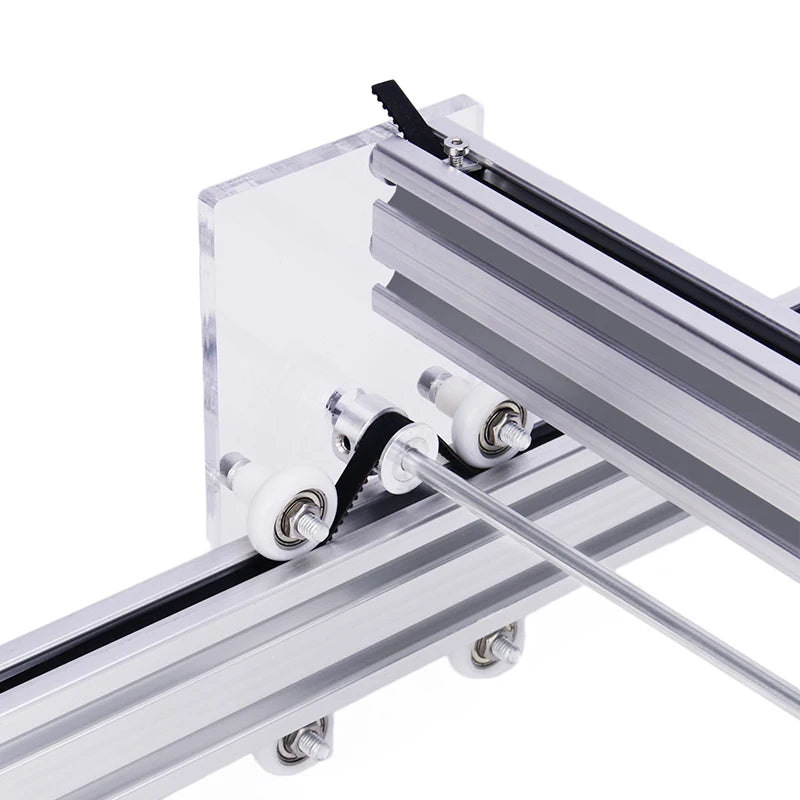

Frame Material: Aluminum and Acrylic

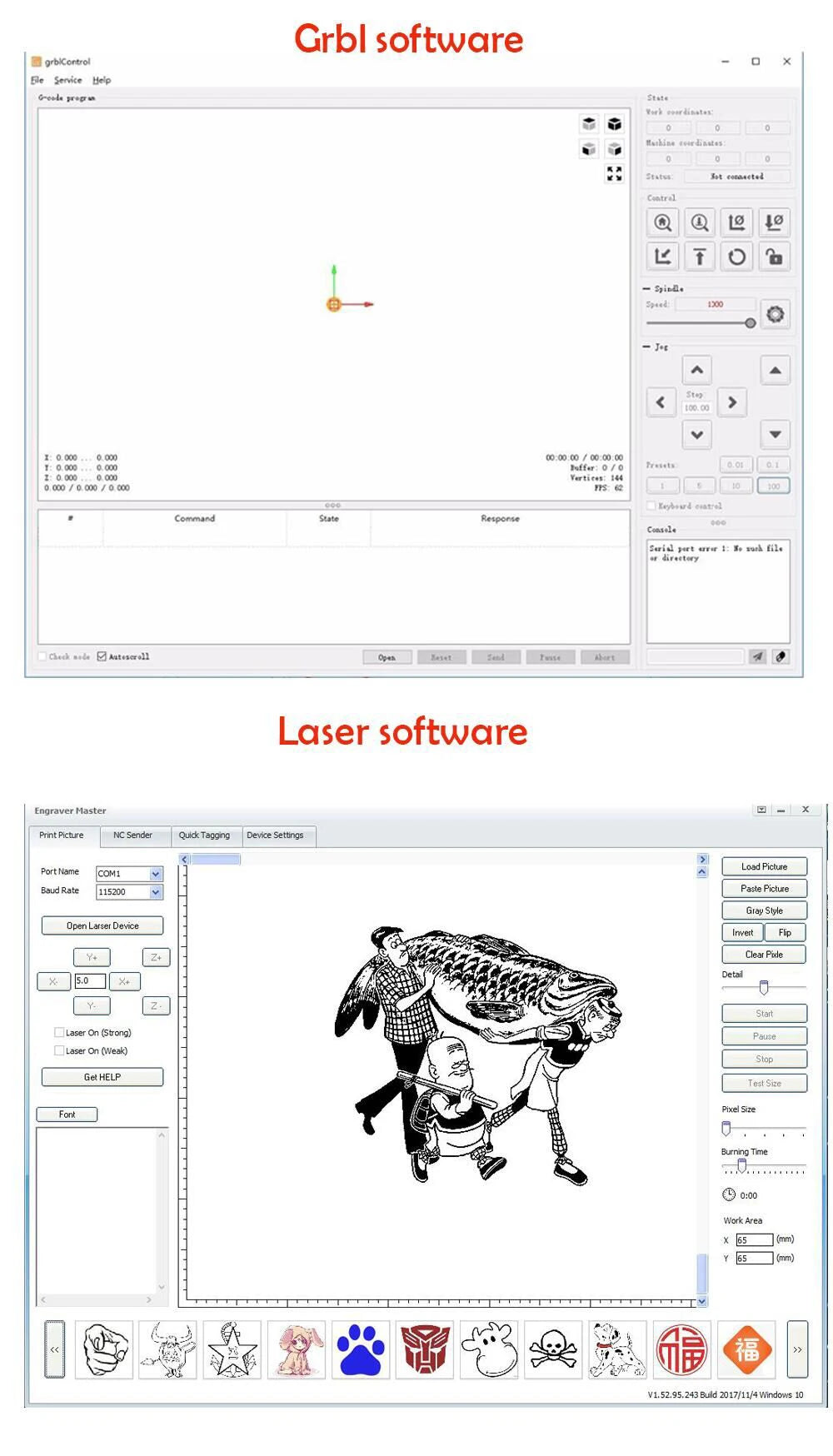

Control Software: Laser grbl (works with Lightburn software)

Working mode: USB with PC for Windows XP/7/8/10 or Offline controller

Power Supply:DC12V 5A, Input 100V-240V AC,50/60Hz

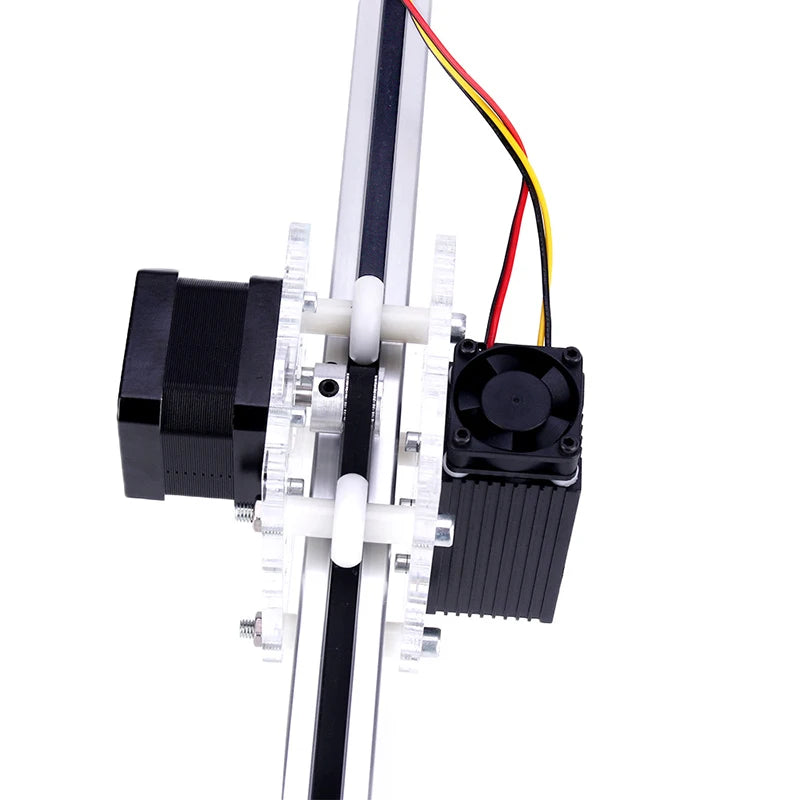

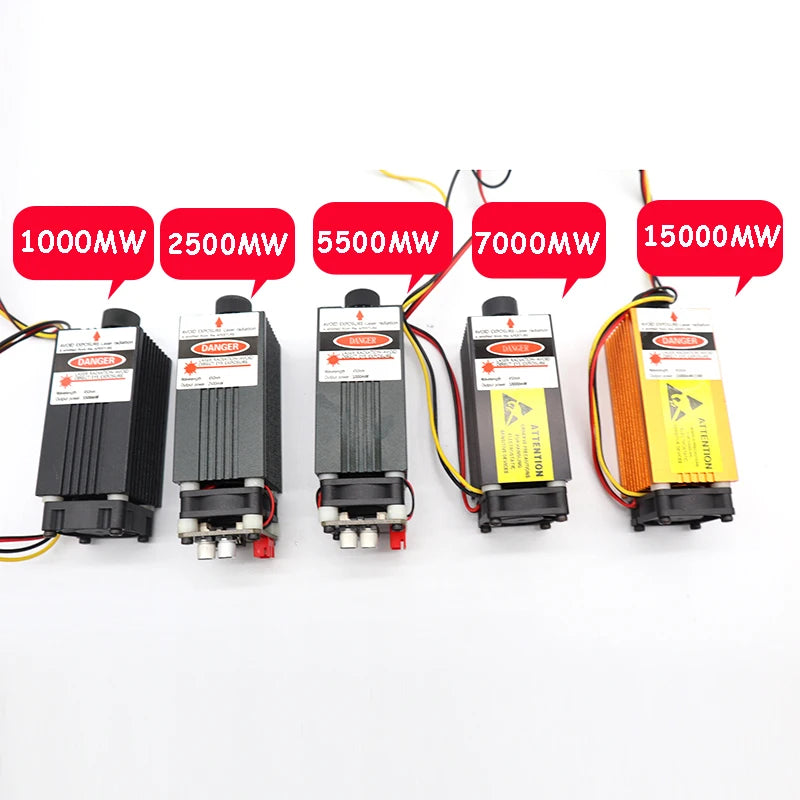

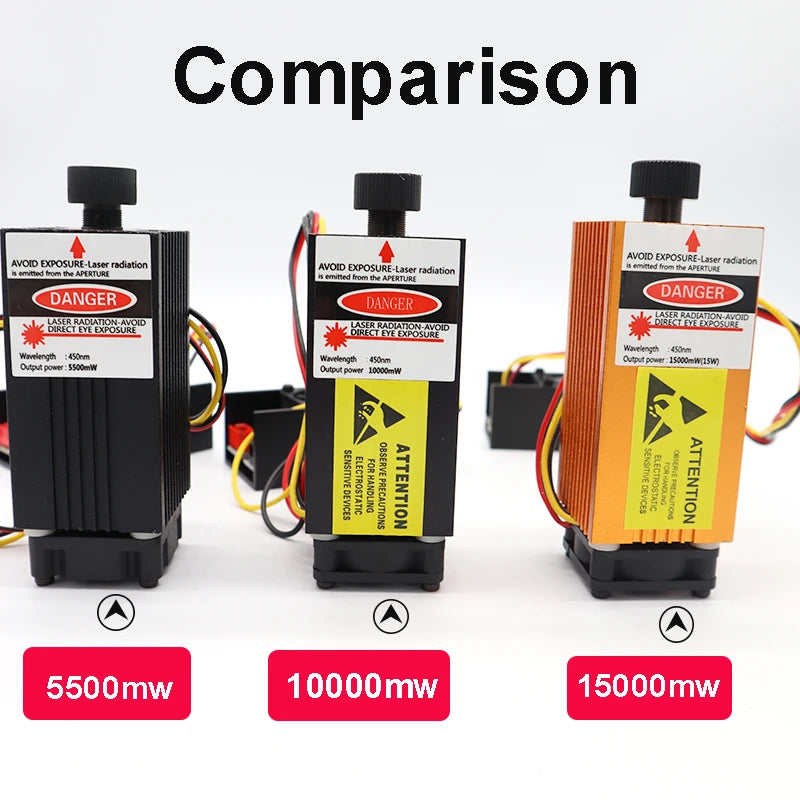

Laser Power:5500mW(Focus adjustable), 15W(18mm fixed focus)

Support PC System: Windows XP,Win7/8/10

Drive system: 42 Nema17 stepper motor(step accuracy: 0.1mm)

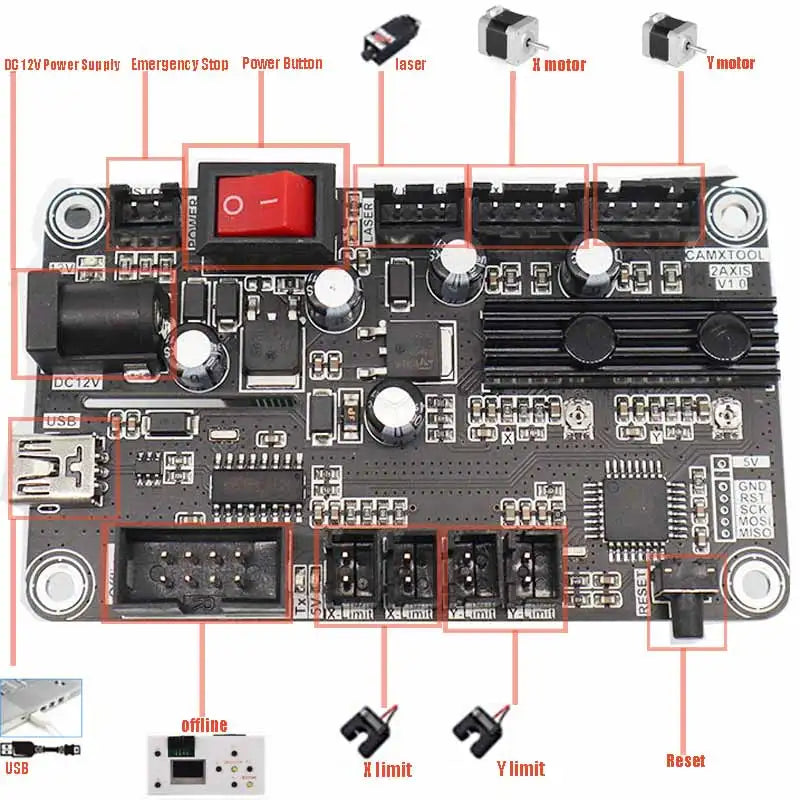

Stepper motor driver:Integrated A4988

Engraving speed: 100-5000m/min

Cutting speed: 1-100ms/pixels
